Outpost™

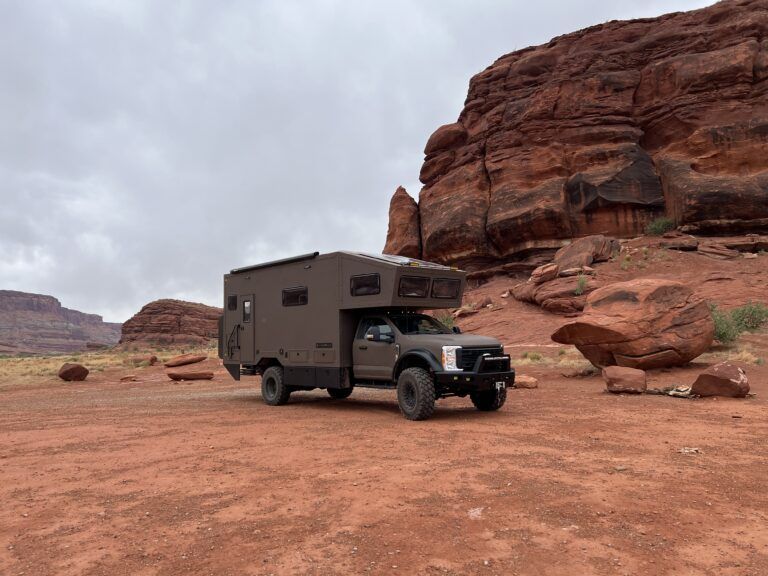

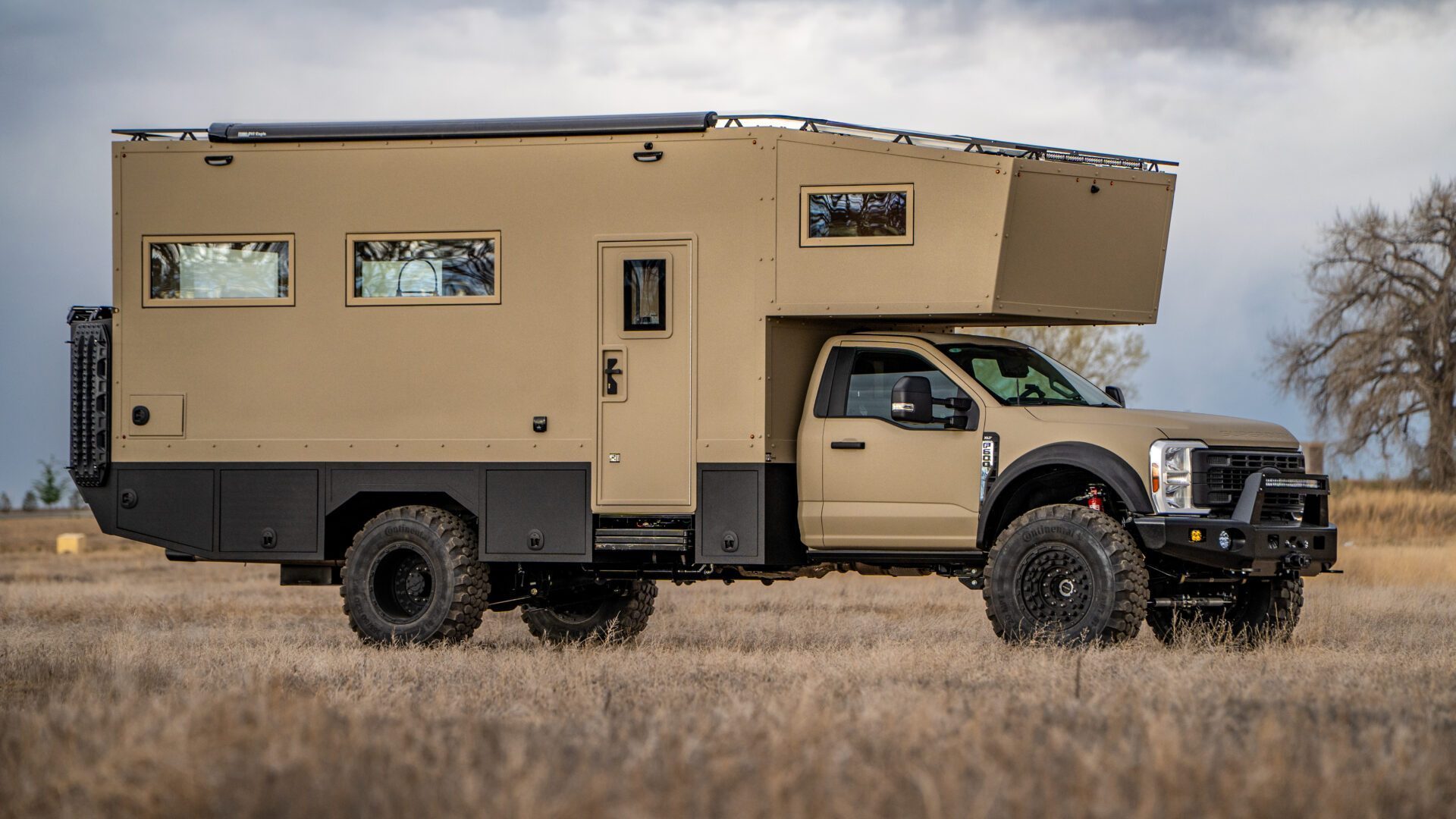

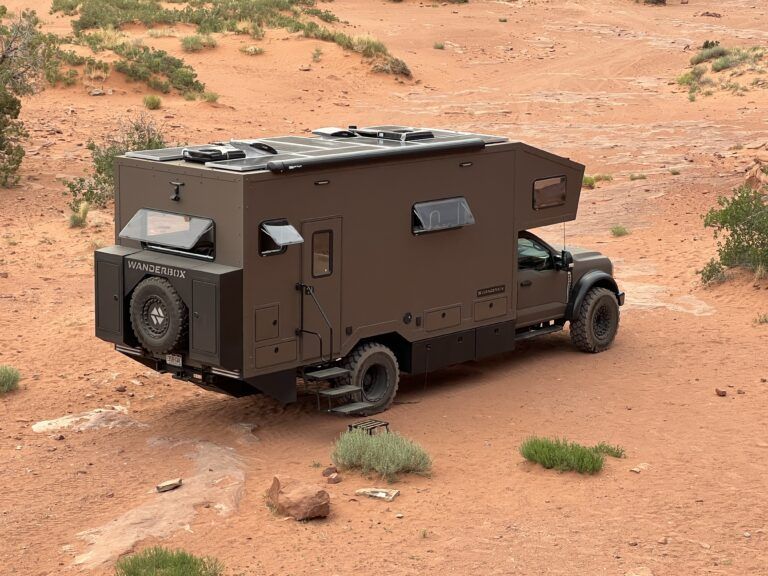

Built for extended off-grid living, the Wanderbox Outpost blends heavy-duty expedition performance with true residential comfort. Multiple floor plans sleep up to six and offer flexible seating, premium interior finishes, and full-size kitchen and bath options. Large freshwater capacity, lithium battery banks up to 45 kWh, integrated solar, and an automatic battery recharge system support weeks of self-sufficient travel.
Oversized off-road tires, available hydraulic suspension with auto-leveling, and configurable exterior armor deliver confident performance on rugged terrain-- and peace of mind. Add upgrades like radiant floor heat, Starlink in-motion internet, and expanded storage to tailor Outpost as a luxurious and convenient mobile office, basecamp, or full-time adventure home.
Key Specs:
- Chassis: Ford F-600 or Chevy 6500, 4x4
- Length: 13’–21’
- Battery Capacity: Up to 45 kWh lithium
- Solar: Up to 2400W
- Fresh Water: Up to 210 gallons
- Sleeping Capacity: Up to 6
Key Specs:
- Chassis: Ford F-600 or Chevy 6500, 4x4
- Length: 13’–21’
- Battery Capacity: Up to 45 kWh lithium
- Solar: Up to 2400W
- Fresh Water: Up to 210 gallons
- Sleeping Capacity: Up to 6
Performance
Ford F-600, 4x4
- 6.7L diesel · 330 HP / 825 lb-ft
- 10-speed automatic
- 22,000 lb GVWR
- Up to 20,000 lb towing
- 66-gallon fuel tank
Chevy 6500, 4x4
- 6.6L diesel · 335 HP / 750 lb-ft
- 6-speed automatic
- 23,000 lb GVWR
- Up to 12,000 lb towing
- 65-gallon fuel tank
Suspension & Tires
Ford F-600
- LiquidSpring front and rear computer controlled liquid hydrollic suspension with Tru-Earth leveling.
- 41” On/off road 335/80R20 super single or optional 43" tires (standard)
- Stazworks black super single off road performance wheels
- Optional 43” tire upgrade 365/80R20
Chevy 6500
- Kelderman front and rear computer controller 4-link air suspension with horizon leveling
- 41” On/off road 335/80R20 super single tires (standard)
- Stazworks black super single off road performance wheels
- Optional 43” tire upgrade 365/80R20
Dimensions
- Habitat length: 12’–21’ exterior
- Width: 96” exterior / 90” interior
- Height: 11’10”–12’2” exterior
- Interior ceiling: 6’8”
Power System
- 24V lithium battery bank: 15–45 kWh
- Solar: 1200W–2200W
Water & Plumbing
- Fresh: 50–140 gal
- Gray: 30–100 gal
- Black: up to 50 gal
- Cassette or Marine flush toilet standard (depending on Model)
- Optional cassette, dry flush, incinerator, or composting (depending on Model)
Climate
- 13.5K BTU A/C standard
- Optional 40K BTU A/C
- Diesel hydronic and water heating
- Optional radiant floor heat
Interior & Appliances
- 10 cu ft DC fridge standard
- Standard induction two burner cooktop, three burner optional
- Optional microwave, dishwasher, washer/dryer
- Dry bath (most models)
- Wet bath available on compact builds
Exterior & Options
- Heavy duty textured bed liner in 56 RAL colors
- Dual-pane acrylic windows
- Optional glass windows
- Electric awning with LED lighting and wind sensor
- Standard Starlink high performance in-motion satellite internet
- Optional 350 lb bike/moto rack
- WanderSAFE comprehensive surveillance & security system available
Warranty
- 10-year structural & panel lamination warranty
- 5-year Wanderbox construction & component warranty
- Separate vehicle chassis manufacturer & consumer products warranties apply

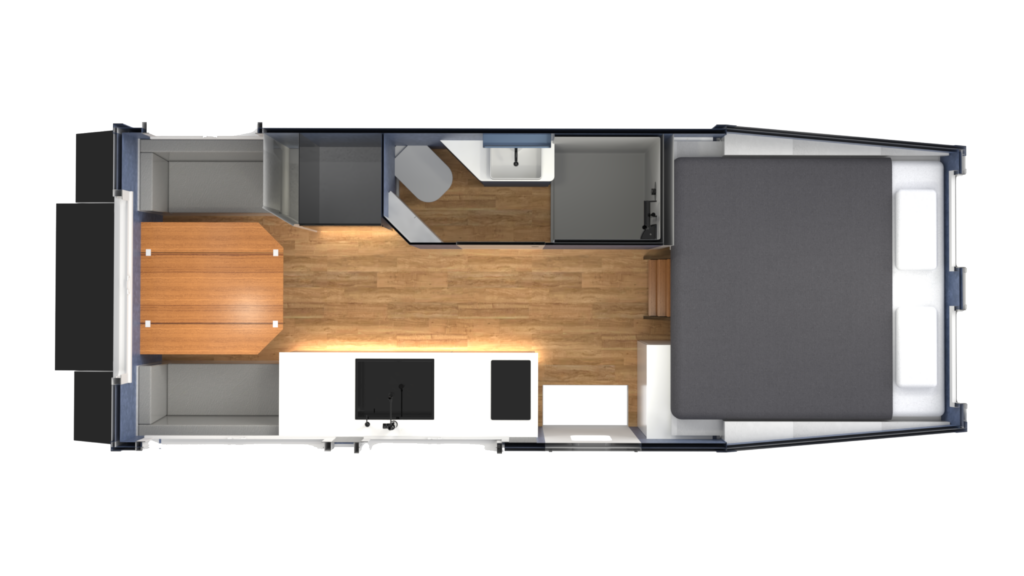

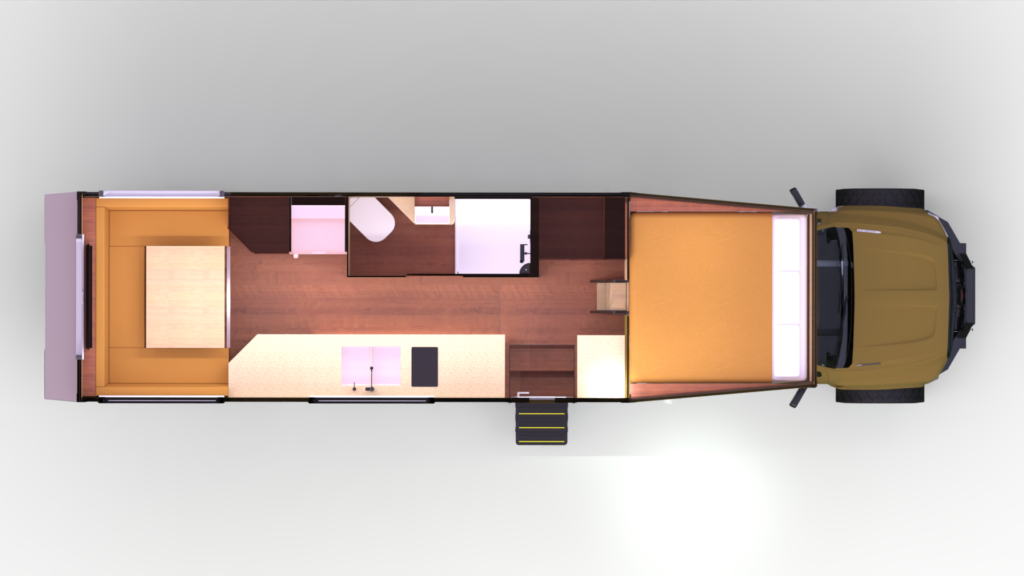

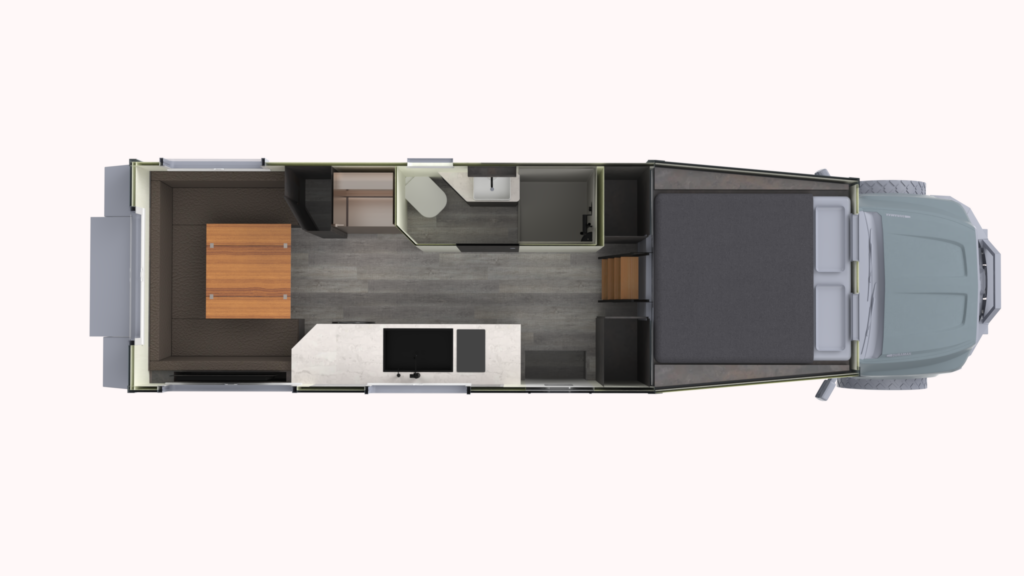

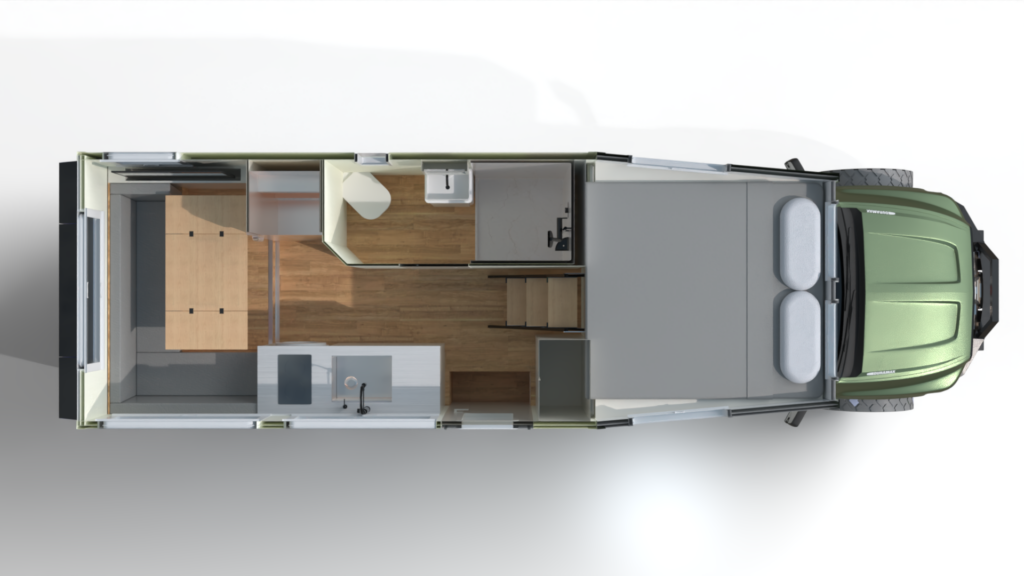

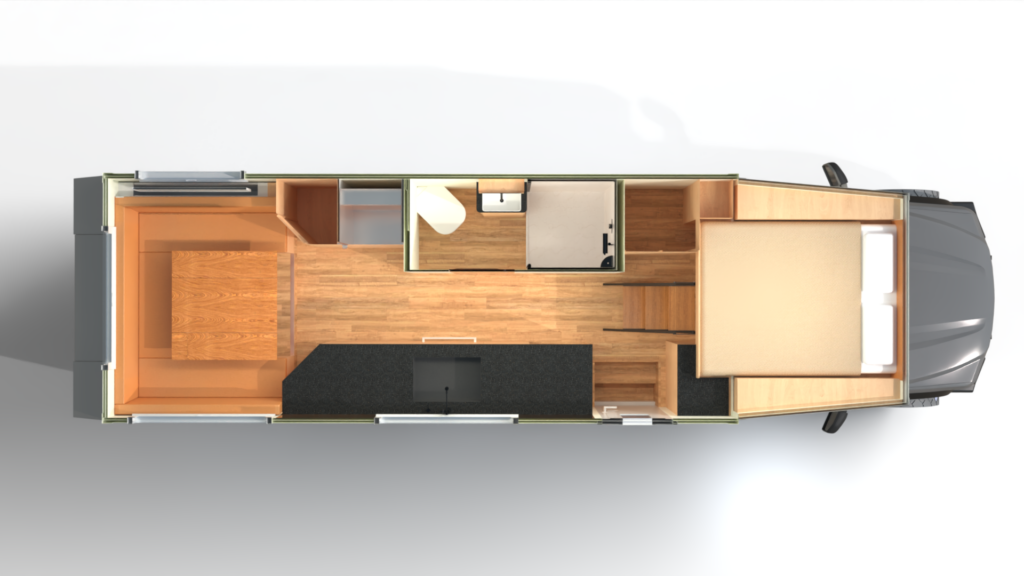

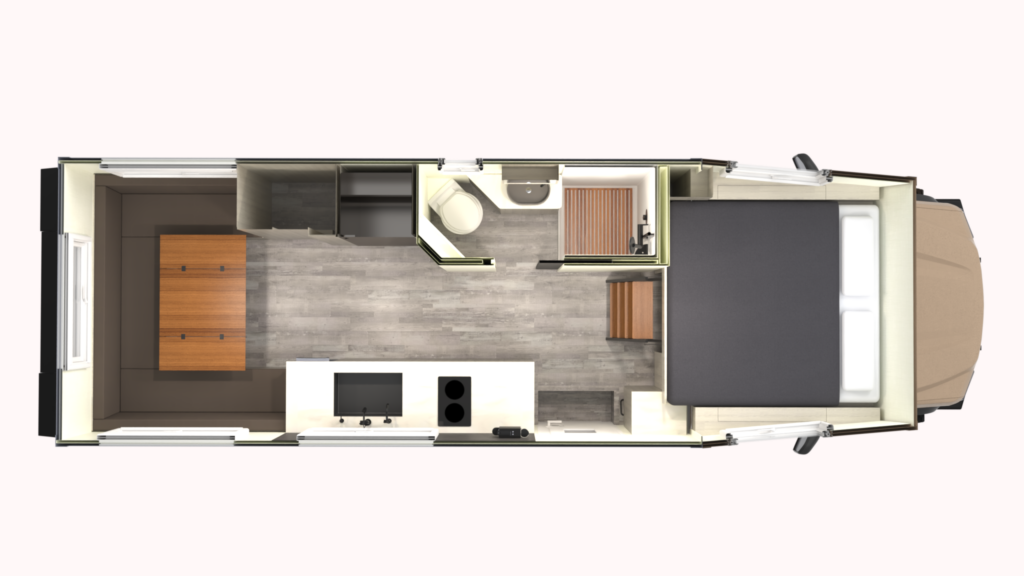

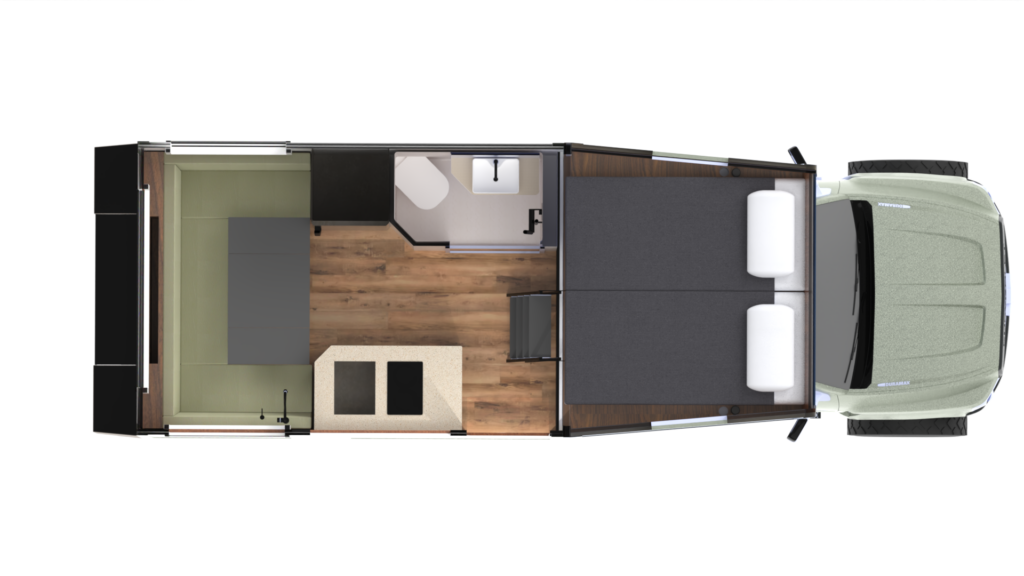

Interior Layouts
Browse our standard floor plans. Other configurations may be available.
